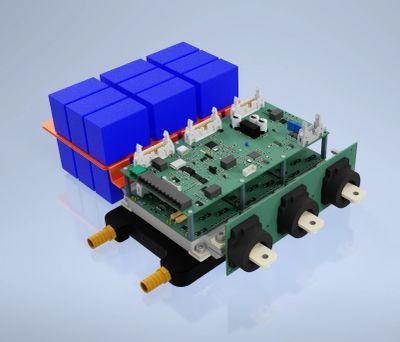

JLM-800V-600A-LC Liquid cooling 250kW
Customizable Design Options
Double capacitor bank version, more continuous power
Tehnical details
- Max power 250kW
- Max Voltage: 800Vdc
- Peak Current: 600A
- Max output current: 380Arms
- Max Efficiency >98,5%
- Weight ~ 3.9 kg
- SD card black box for controller data analysis, via CAN dongle
- Wi-fi telemetry via CAN dongle.
- All settings can be user customized. Hardware and software can be also customized according to the client needs.
- The controller is using high end Infineon power module making it one of the best efficiency on the market.
- Communication: CAN bus, serial, SPI, USB for programming, open source software based on VESC
- Android or iOS app to live view all the parameters
- Safety: double independent hardware over-current protection. Monitors all phase currents, DC bus voltage, 3 base IGBT temperature monitors. Short circuit protection with gate driver level DESAT protection implemented.
- For more details please contact us.
- Before ordering we recommend contacting us to ask about the delivery time and stocks.
- The prices do not include VAT tax
